Industrial construction across India has shifted rapidly over the last decade. Modern businesses are no longer looking for simple, basic shelters. Instead, they demand advanced systems that offer superior structural design, rapid assembly, long-term cost-efficiency, and the resilience to withstand unpredictable environmental conditions.
When engineering Pre-Engineered Buildings (PEBs), heavy-duty warehouses, or automated factories, achieving this balance relies heavily on the quality of your secondary structural members. Among these, the C & Z Purlin system stands out as the ultimate structural backbone for modern roofing and cladding systems.
What Role Do Purlins Play in a Building?
Purlins are secondary structural steel components installed horizontally between the primary rigid frames of a building. They play a critical dual role:
- Framework Support: They provide a secure horizontal framework to anchor roof sheets and vertical wall cladding.
- Load Transfer: They safely capture live loads (maintenance traffic), dead loads (the weight of the roofing sheets), and dynamic wind loads acting on the roof, transferring them evenly down into the primary steel rafters and columns.
Without precision-engineered purlins, industrial roofing systems face severe risks of excessive deflection (sagging), reduced building stability, and a significantly shortened overall structural lifespan.
Why C & Z Purlins Dominate PEB Structures
Traditional, heavy hot-rolled channel sections are rapidly becoming obsolete. Instead, modern engineering firms prefer cold-formed C and Z purlins because of five key structural advantages:
- Drastic Weight Reduction: Cold-formed steel profiles lighten the total dead weight of the upper framework. This directly reduces the stress on primary pillars, translating to substantial savings in foundation concrete and primary structural steel costs.
- Rapid Installation: High-quality purlins are precision roll-formed, pre-cut to custom lengths, and factory-punched based on specific CAD layouts. This virtually eliminates on-site labor mistakes, cutting, or field welding.
- Optimal Structural Efficiency: They offer highly favorable strength-to-weight ratios, ensuring excellent load distribution capable of handling intense up-lift wind speeds and heavy industrial cladding.
- Minimal Maintenance: Advanced protective coatings guard the base metal against environmental degradation, slashing long-term upkeep expenses.
- Extended Service Life: Engineered to withstand structural stress without bending, adding decades of reliable performance to the building’s overall lifespan.

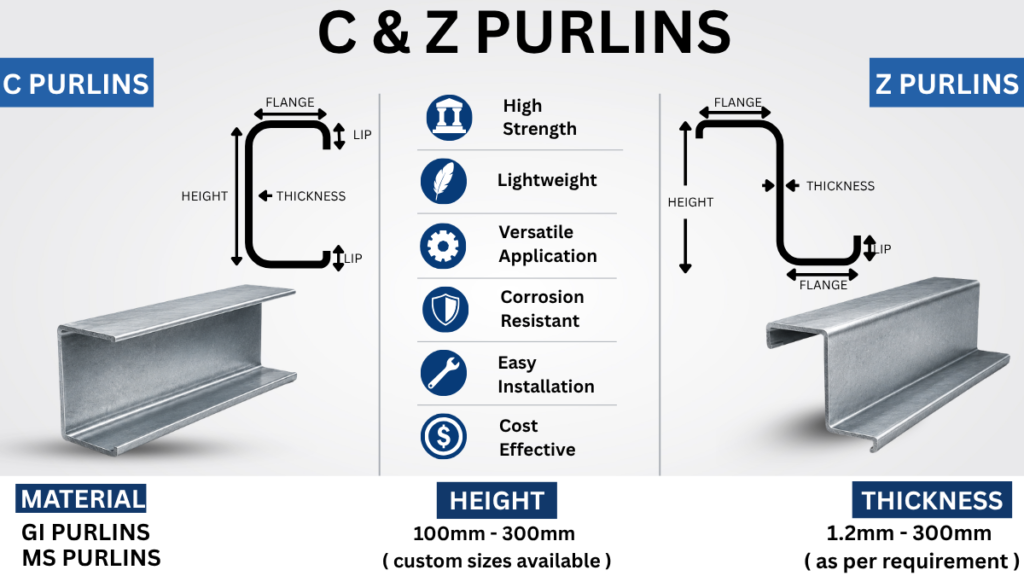

C vs. Z Purlins: Understanding the Geometry
Choosing the correct profile depends entirely on your architectural design, span lengths, and structural load calculations.
1. C Purlins: Versatility and Ease
Named after their distinct, symmetrical “C” shaped cross-section, these components are highly favored for independent spans, endwalls, and simpler framing networks like door or window trimmers. They are widely implemented in:
-
- Standard factory sheds, workshops, and commercial complexes
- Mezzanine floor supports and staircase framing
- Storage warehouses and agricultural sheds
2. Z Purlins: Engineered for Long-Span Rigidity
Z Purlins are structurally unique because their unequal flanges allow them to flip and overlap seamlessly at the support beams. This nesting capability creates a continuous beam effect across multiple structural bays, significantly enhancing load-bearing capacity and allowing for wider spans between primary pillars. They are the go-to choices for:
-
- Mega logistics parks, distribution centers, and large-scale manufacturing plants
- High-aesthetic, heavy-duty industrial complexes with wide column spacing
Material Breakdown: GI vs. MS Purlins
The geographical environment and specific budget of your project will dictate whether you should deploy Galvanized Iron (GI) or Mild Steel (MS) profiles.
| Specification | GI (Galvanized Iron) Purlins | MS (Mild Steel) Purlins |
| Available Thicknesses | 1.5 mm | 2.0 mm | 3.0 mm ( as per requirement ) | 1.5 mm | 2.0 mm | 3.0 mm ( as per requirement ) |
| Height | 100mm – 300mm ( custom sizes available ) | 100mm – 300mm ( custom sizes available ) |
| Coating Options | 80 GSM | 120 GSM | 275 GSM (Zinc) | Red Oxide Primer / Factory Painted |
| Best Suited For | Humid, coastal, or chemically exposed environments. | Heavy-duty, high-load indoor industrial applications. |
| Primary Benefit | Maximum rust & corrosion resistance; zero maintenance. | Ultimate cost economy with high physical strength. |
The Hidden ROI: How Quality Purlins Reduce Total Construction Costs
Smart builders look beyond the initial purchase price of steel to analyze the lifecycle cost of the structure. High-quality secondary members deliver major financial returns:
- Lower Foundation Costs: Because high-strength purlins reduce the overall upper structural weight, engineers can design lighter, less expensive concrete foundations.
- Eradicated Labor Waste: Factory-made, pre-punched purlins eliminate on-site cutting, welding, and drilling mistakes, slicing weeks off the construction timeline.
- Reduced Operational Downtime: Utilizing a high zinc-coating (like 275 GSM GI) guarantees that a facility won’t need structural roof maintenance or paint touch-ups for years, keeping business operations uninterrupted.
Premium Manufacturing Across India: Bhagwati Steel Building
A building is only as reliable as the raw materials driving its structural design. Based in Surat, Gujarat, Bhagwati Steel Building utilizes high-precision, automated roll-forming technology to manufacture customized, high-tier GI and MS C & Z Purlins.
To guarantee uncompromised quality, all products are crafted using premium raw steel sourced directly from India’s industrial giants:
- JSW Steel
- Tata Steel
- AMNS Steel
Whether your project requires custom length profiles, specialized hole-punch configurations, or heavy-duty 275 GSM corrosion protection, Bhagwati Steel Building provides competitive pricing and reliable, fast delivery across India.
Conclusion
A durable, high-performance building always begins with a robust structural framework. In the fast-paced world of industrial construction, choosing the right secondary structural members is not just a technical detail—it is a critical business decision.
By integrating precision-engineered C and Z Purlins into your Pre-Engineered Buildings, you secure a framework that reduces dead weight, speeds up construction timelines, and drastically drops structural foundations costs.
Whether your project calls for the ultimate rust protection of Galvanized Iron (GI) in coastal zones or the high-strength cost economy of Mild Steel (MS) for heavy manufacturing plants, Bhagwati Steel Building delivers. Combining state-of-the-art roll-forming technology with top-tier raw materials from JSW, Tata, and AMNS, they engineer the exact reliability your next industrial facility needs to stand strong for decades.
FAQs
Q1. What is C & Z Purlins used for?
They act as secondary structural framing members that support roofing sheets and wall cladding while transferring structural loads down into the primary steel frame.
Q2. Which purlin is better for long-span buildings?
Z Purlins are highly preferred for long spans because they can overlap (nest) at support points, creating a rigid continuous beam that handles higher loads over wider spacing.
Q3. What is the benefit of choosing GI Purlins?
GI purlins feature a zinc coating that offers excellent resistance to rust and atmospheric corrosion, making them perfect for outdoor or humid environments without requiring frequent repainting.
Q4. Are custom purlin lengths and punchings available?
Yes! Bhagwati Steel Building manufactures purlins tailored precisely to your engineering blueprints, providing customized lengths and pre-punched hole patterns for immediate on-site bolting.
