Coated Sheet
We are successfully meeting the varied requirements of our clients by providing the best quality range of COLOUR COATED PROFILE | JSW BGL SHEET | Supplier in Gujarat

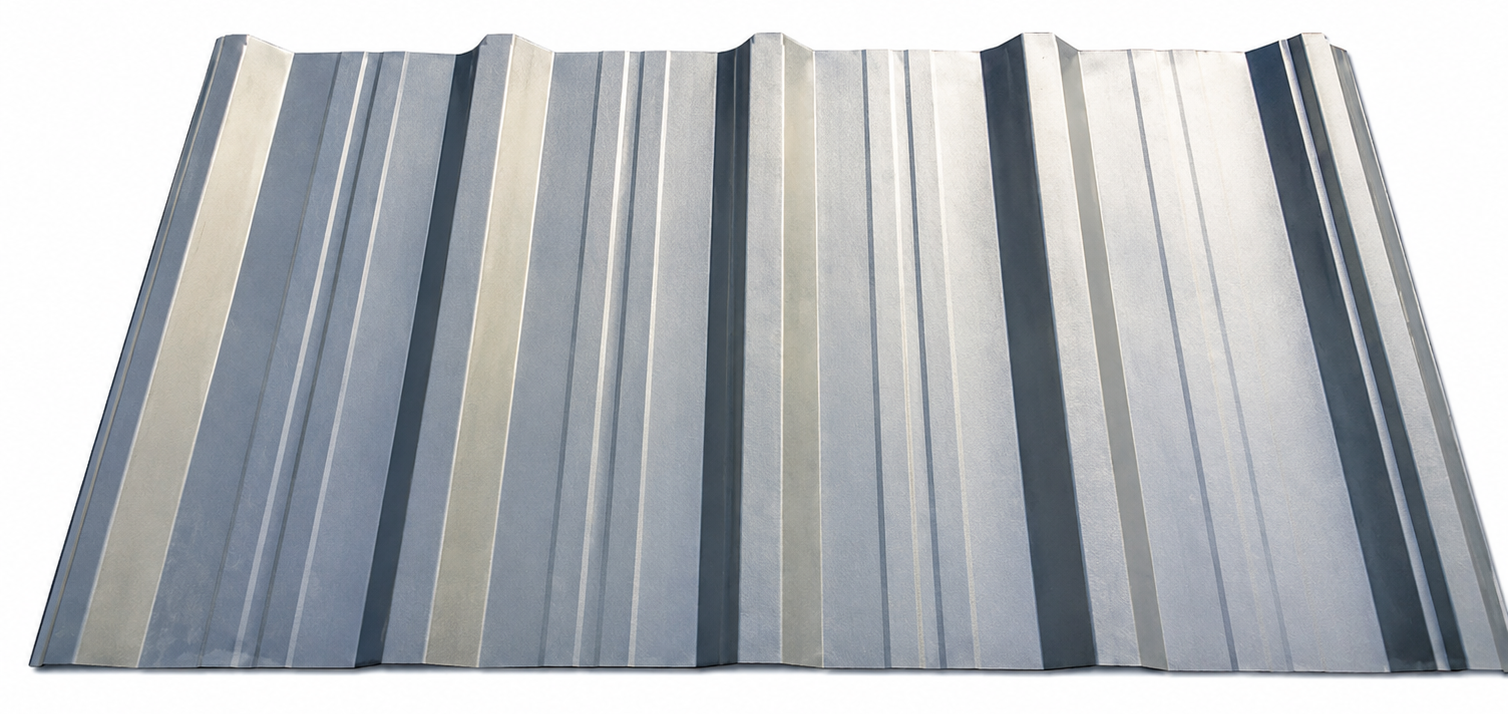

We are offering our esteemed clients with a huge assortment of Galvalume Steel Sheets that are perfect for many roofing solutions. The offered Galvalume Sheets are steel sheet with a hot dip-applied coating of about 55% aluminum and 45% zinc. These sheets can cover the buildings in all types of weather and environments around the world, the reputation of Galvalume sheet is hugely demanded by all the architects, contractors and building owners.
Our unit is developed with experienced team of engineers, who design the best galvalume sheets, with the unique attributes like performance, durability, stability, maintenance and installation.
Our unit is developed with experienced team of engineers, who design the best galvalume sheets, with the unique attributes like performance, durability, stability, maintenance and installation.
WE SUPPLY DIVERSE COLOURS AS PER RAL LIKE:
• Blue
• Mist Green
• Autumn Red
• Terra Coated Red
• Half-White
• Tarrus Blue
• Grey
• Dark Blue
• Beize
• Bare Galvalume
• Others as per requirement
Our Products:
TECHNICAL SPECIFICATION OF GALVALUME SHEETS
| Details | Pre Painted Galvanized | Color Coated Galvalume | Al Zn/Bare Galvalume |
| Combination | 99.05%ZN | 55%AL 43.4%ZN&1.6 %SI | 55%AL 43.4%ZN & 1.6%SI |
| Coating Std | As Peru 277 | AS 1397-93 | AS 1397-93 |
| Coating Mass | 120gsm/ Col:30-35u | 150gsm / col:30-35u | AZ 150 gsm |
| Base Metal | High Tensile & soft Material / CR | High Tensile / CR | High Tensile / CR |
| Nominal Thickness (TCT) | 0.40TCT, 0.45TCT mm, 0.47TCT & 0.50TCT mm | 047TCT & 0.50 TCT mm | 047TCT & 0.50 TCT mm |
| Yield Strength | 240, 345 & 550 Mpa | 550 Mpa | 550 Mpa |
| Paint | Regular Modified Polyster System | Regular Modified Polyster System | ——- |
| Silicon Modified Polyster System | Silicon Modified Polyster System | ||
| Poly Vinyl Di Floride Polyester System | Poly Vinyl Di Floride Polyester System |
Advantages of Galvalume Sheets
- Excellent durability
- Corrosion resistant
- Reduced fixing time
- High tolerance against adverse weather conditions
- Approximately half the carrying structure compared to clay/ concrete tiles
- Reduced transportation costs
- Profile provide excellent spanning ability and remarkable recovery
- Excellent ridge & curve profiles
- The Long spanning ability and more cove range per unit mass permit
- Wide support spacing enabling supporting structure economies
- Provides a lifelong roofing products
- Invaluable asset in designing and creativity
Bare Galvalume Sheet(BGL)
